操作步骤及注意事项 OPERATION INSTRUCTION
1. 开机前调节剥头长度挡片到所需位置，使每次剥头长度均匀。
Adjust the gauge for the proper strip length by grasping the handle at the rear of the HOTWEEZERS®.
注意：需在红色把手处调整，不能直接在挡片处调整，否则会影响挡片与刀头的平行。
Attention: Adjust the gauge for the proper strip length by grasping the handle at the rear of the HOTWEEZERS, Never grasp the front stop plate to prevent misalignment.
2. M-10将手柄插头插入所需温度范围插孔("HI或LO")，M-20将切换开关放置到所需温度范围位置("HI或LO")，再根据不同绝缘体材料调节刀头所需温度。
As to M-10, please plug the hand unit into "HI" or "LO" output jacks according to the required temperature range; as to M-20, please push the switch button to "HI" or "LO" first, and then adjust the temperature according to the insulation materials。
注意 Attention：
A) 需在关机状态下插入或更换插头位置孔("HI或LO")；
Hand unit should be plugged into either "HI" or "LO" output jacks or switched between them with the Power Supply OFF;
B) 不能同时使用"HI" "LO"两个插孔；
Do NOT use "HI" and "LO" output jacks simultaneously;
C) 温度设定为定性判断（无具体温度显示），以能将绝缘层迅速熔断，但不烧焦、不粘刀头、不产生大量烟雾的情况下尽量设定较低温度，同样材料不同线径也需设定不同的温度，不同用户可以根据各自的经验设定不同的温度档位参考表;
Since the composition and thickness varies for conductors and cables, the temperature setting is considered approximate. If the type of insulation is not known, start at "1" on the LO range and gradually increase the temperature until the stripper is just hot enough to pierce the insulation without melting or burning. At the correct temperature, the slug of stripped insulation should not stick to the stripper. Avoid temperature settings that cause the generation of fumes. Users can set the temperature according to their own experiences；
D) 在"HI"状态下应避免温度超过"9"，否则将影响刀头寿命。
Avoid using HOTWEEZERS above "9" on the "HI" range. Prolonged use at maximum level will shorten the life of the strippers.
3. M-10型热剥器不防静电，禁止剥另一端已焊有静电敏感器件的导线。M-20为防静电型热剥器，应用于线缆中有静电敏感器件的需要静电防护的场合。
M-10 is Non-ESD model and strictly inhibited to strip cables and wires welded to electrostatic sensitive devices. M-20 is ESD model, which is for applications with electrostatic sensitive devices.
4. 将导线端头放入与导体直径相对应的刀口孔径位置，轻度用力夹紧镊子并转动约15度以熔断整个绝缘层。
Close the jaw together around the wire and rotate the HOTWEEZERS® about 15° to eliminate any insulation "tails".
注意：剥头刀口朝上握持手柄，刀口背面正对操作者以便识别对应的刀口。
Attention: The rear face of the blades should be toward you as you align the conductor to be stripped with the proper gauge hole.
5. 烫断绝缘层后用手拉脱绝缘端头。
Remove the wire from the stripper and pull of the insulation slug by hand.
注意：建议不要用手柄刀头直接拉脱绝缘体，以免划伤导线芯线及刀头。
Attention: Do not pull of the slug with the stripper to avoid damage to the conductors.

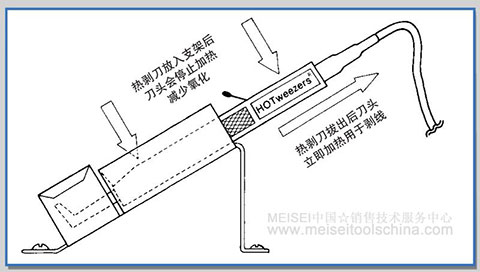

6. 将手柄放入主机支架，使剥头温度自动回到待机预热状态。
Placing the hand unit in the holder automatically switches the temperature control to "1" position (LO).
注意：在不使用手柄时，不要将手柄任意放置在其他地方，以免手柄长时间过热和意外烫伤人体，延长刀头寿命。
Attention: NEVER put the hand unit down or set it aside. Always return HOTWEEZERS to their holder when not in use. Neglecting to do this can cause accidental burns and will shorten the life of the strippers.
7. 维护：只需要经常清洁刀口，如有粘糊的绝缘层残留物，可用软金属毛刷去除，不可使用锉刀去除。
Maintenance: Occasional cleaning of the stripping head is the only maintenance required. Remove large pieces of insulation and residue with soft metal bristle brush. NEVER clean HOTWEEZERS with a file.
8. 环境：请在通风良好的工作环境中使用，否则热剥所产生烟雾将严重影响身体健康，建议选配英国BOFA 250HC专用烟雾净化系统，以确保操作者健康安全。
Environment: Should only be used in areas with power ventilation。
HOTWEEZERSTM FAQ常见问题 FREQUENTLY ASKED QUESTIONS
Q：What is the difference between the 4 Series and the 7 Series HOTWEEZERS™?
4A/4B/4C系列和7A/7B/7C系列的HOTWEEZERS™热剥手柄有何不同？
A：The 7 Series are Electrostatic Discharge (ESD) versions, the 4 Series are non-ESD.
7A/7B/7C系列为防静电型手柄，4A/4B/4C系列为通用型手柄（非防静电）。

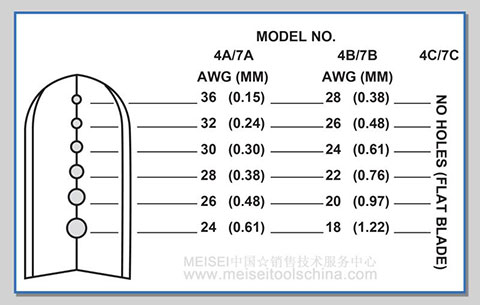

Q：What are the WIRE GAUGE RANGES for the different model HOTWEEZERS™?
不同型号的HOTWEEZERS™热剥手柄线规范围是多少？
A：4A & 7A hand units: AWGs 36, 32, 30, 28, 26, 24
4B & 7B hand units: AWGs 28, 26, 24, 22, 20, 18
4C & 7C hand units: No Holes/ Flat Blade
4A & 7A手柄：AWG美国线规36, 32, 30, 28, 26, 24；公制线规0.15、0.24、0.30、0.38、0.48、0.61
4B & 7B 手柄：AWG美国线规28, 26, 24, 22, 20, 18；公制线规0.38、0.48、0.61、0.76、0.97、1.22
4C & 7C手柄：无孔/平口型，适用于所有线规，但剥头时刀口需要旋转一定角度。
Q：What is the HOTNIFE?
HOTNIFE热割刀是什么？
A：The HOTNIFE is a single blade with the same thermal properties as the HOTWEEZERS™.
HOTNIFEs comes in both ESD (model 3A) and non-ESD (model 2A) versions.
HOTNIFE热割刀为单一切割刀头，加热性能与HOTWEEZERS™热剥手柄完全相同。
HOTNIFE热割刀也分防静电型 3A 和通用型2A（非防静电）。
Q：Can I use the same power supply for ESD and Non-ESD hand units?
防静电型和通用型（非防静电）手柄可以使用相同的主机电源吗？
A：No, ESD and Non-ESD models have different connectors and therefore require different power supply units.
The 4 Series HOTWEEZERS™ and 2A HOTNIFE use the M-10 power supply.
The 7 Series HOTWEEZERS™ and 3A HOTNIFE uses the M-20 power supply.
不可以，防静电型和通用型（非防静电）接口不同，需要连接不同的主机电源。
4A/4B/4C系列HOTWEEZERS™ 热剥手柄和 2A HOTNIFE热割刀使用M-10主机电源。
7A/7B/7C系列HOTWEEZERS™ 热剥手柄和3A HOTNIFE热割刀使用M-20主机电源。
Q：What is the voltage of the M-10 and M-20 Power Supplies?
M-10与M-20主机电源的电压为多少？
A：The power supply units are available in 100 volt, 115 volt and 220 volt versions. Please specify the correct voltage when ordering.
主机电源有100V、115V和220V三种。下订单时请注明正确的电压。
Q：How long is the Cord on the HOTWEEZERS™ and HOTNIFES?
HOTWEEZERS™热剥手柄 和HOTNIFES热割刀的电线有多长？
A：The standard cord length is 3 feet. Optional cord lengths of 4 feet or 6 feet are available an additional fee.
手柄标准电线长度为3英尺。另有4英尺和6英尺电线长度可选配，需另外增加费用。
Q：What is the temperature range of the HOTWEEZERS™ and HOTNIFES?
HOTWEEZERS™ 热剥手柄和 HOTNIFES热割刀的温度范围是多少？
A：Both the HOTWEEZERS™ and HOTNIFES have a temperature range from approximately 300° F to 1,500° F.
HOTWEEZERS™ 热剥手柄和HOTNIFES热割刀的温度范围均为大约300-1500华氏度（149-816℃）。
Q：Where are Meisei Tools' products made?
Meisei Tools 公司的产品在哪里生产的？
A：All of our products are manufactured in the United States.
所有Meisei产品均在美国原厂生产。
Q：What is Meisei Tools' return policy?
Meisei Tools 公司的保修政策是怎样的？
A：Our products are guaranteed for 90 days against defects in materials and workmanship.
因材料和工艺造成的产品缺陷，我们质保期为90天。
Q：Does Meisei Tools offer a product repair service?
Meisei Tools 公司提供产品维修服务吗？
A：We do not offer product repair at this time. However we do offer a limited number of replacement parts. Please contact our local distributor and service center for a list of available parts and pricing.
目前我们不建议产品返厂维修服务（进出口手续及运输成本因素），但可提供一定数量的替换维修部件，可联系我们当地技术服务中心获取维修部件清单及价格。
